Aquasurge Pumps G2 Replacement Parts Diagram

Aquasurge 2000 (G2) - Item #91017

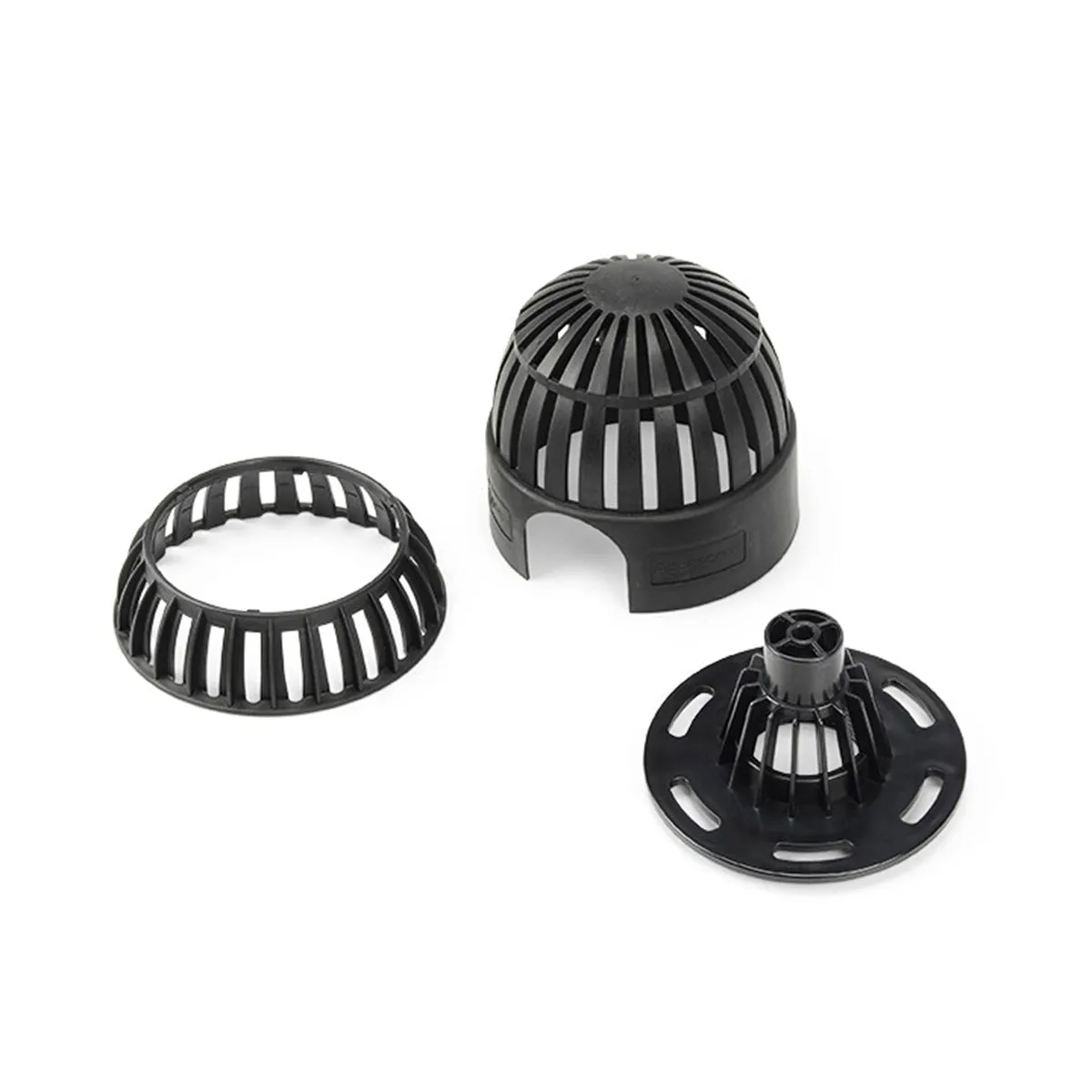

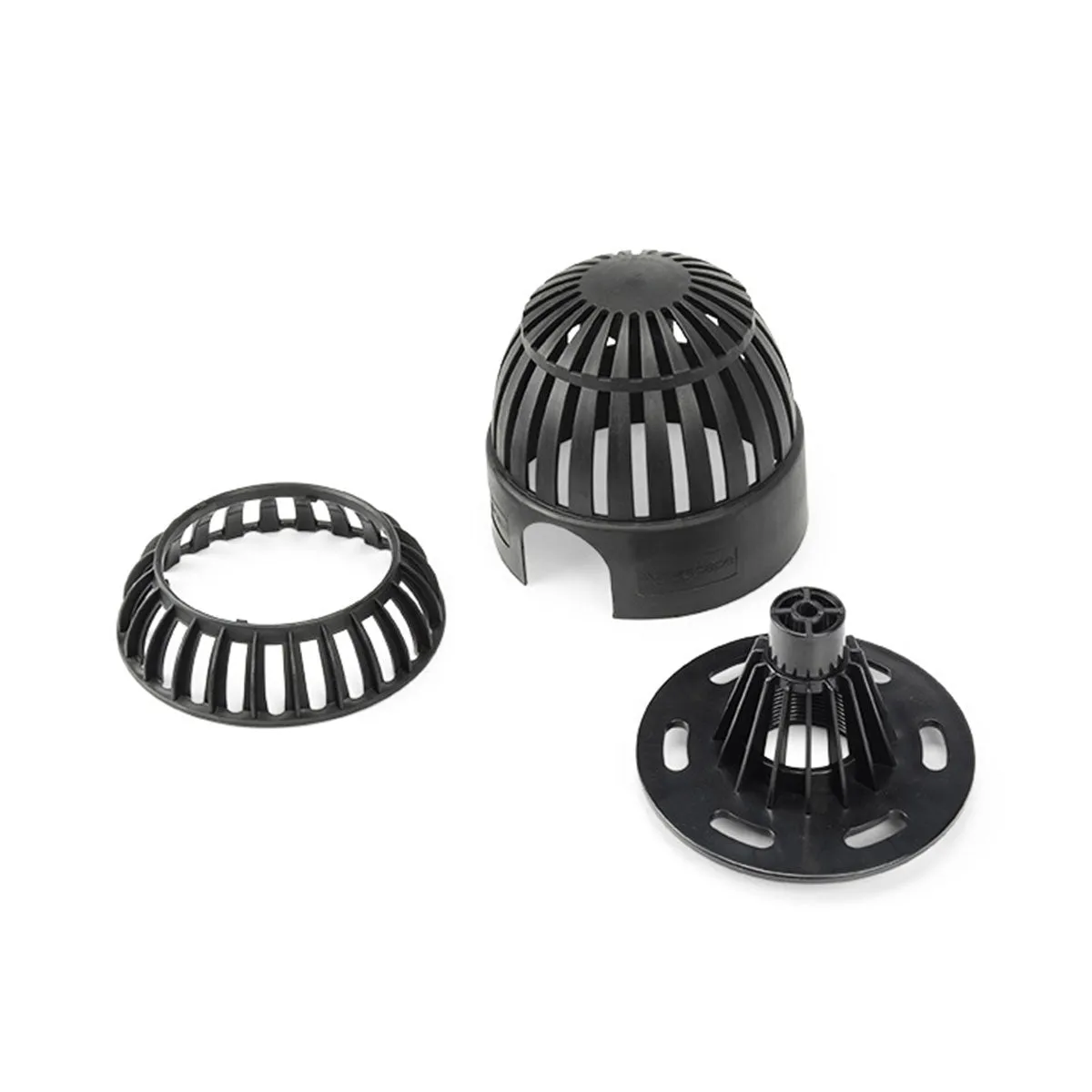

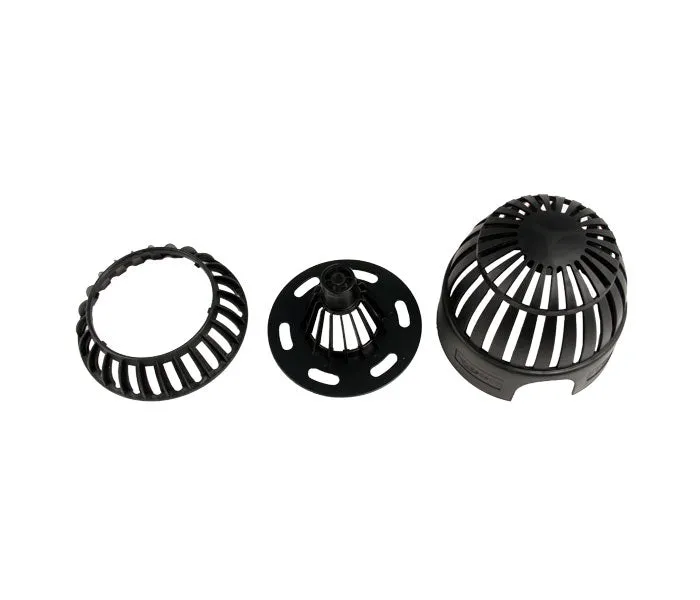

1. #91063 AquaSurge 2000/3000 (G2) Intake Screen Kit

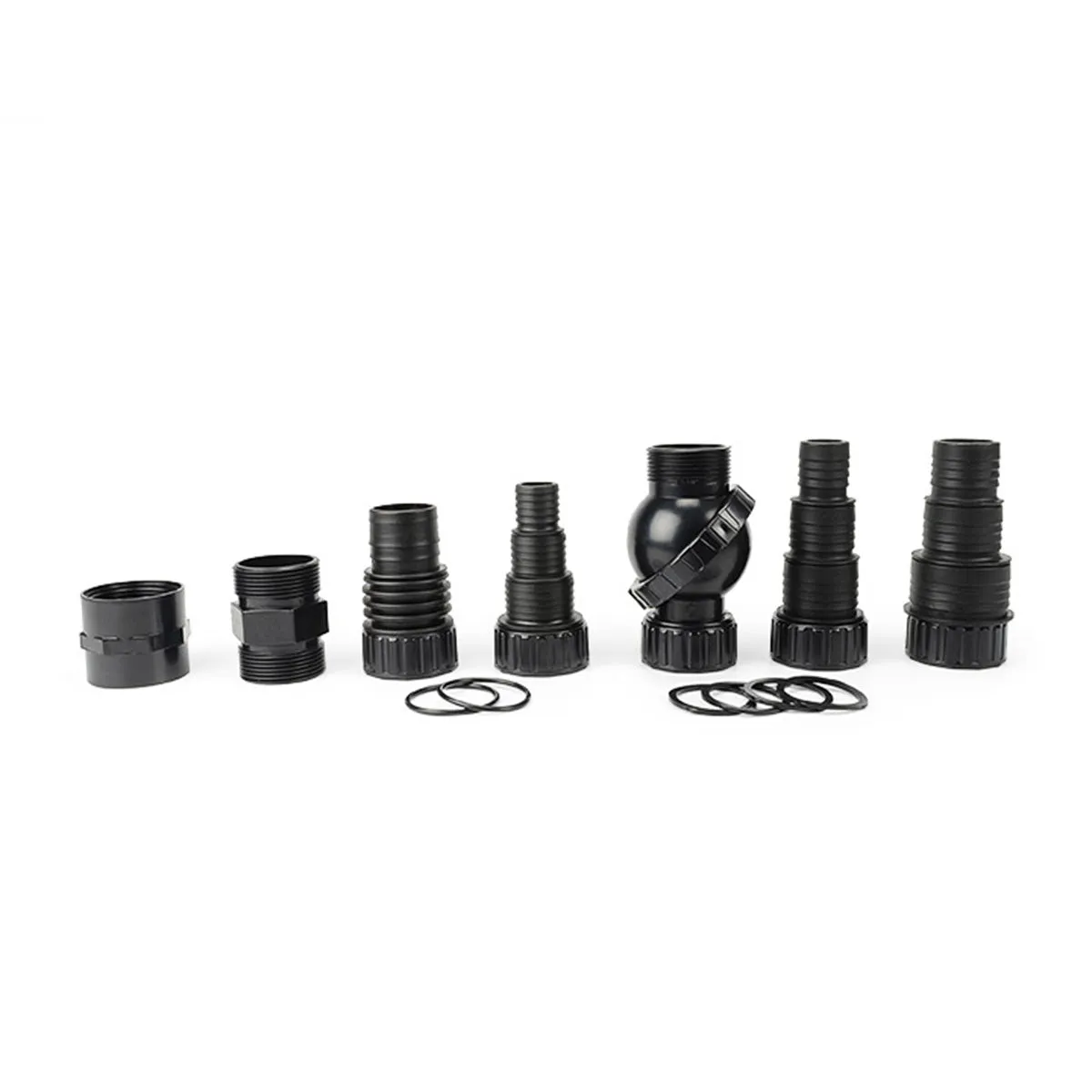

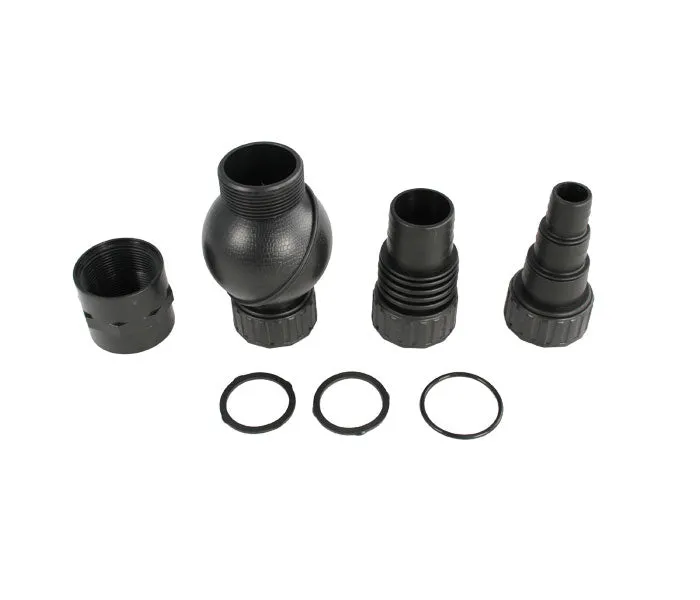

2. #91065 AquaSurge (G2) Discharge Fitting Kit

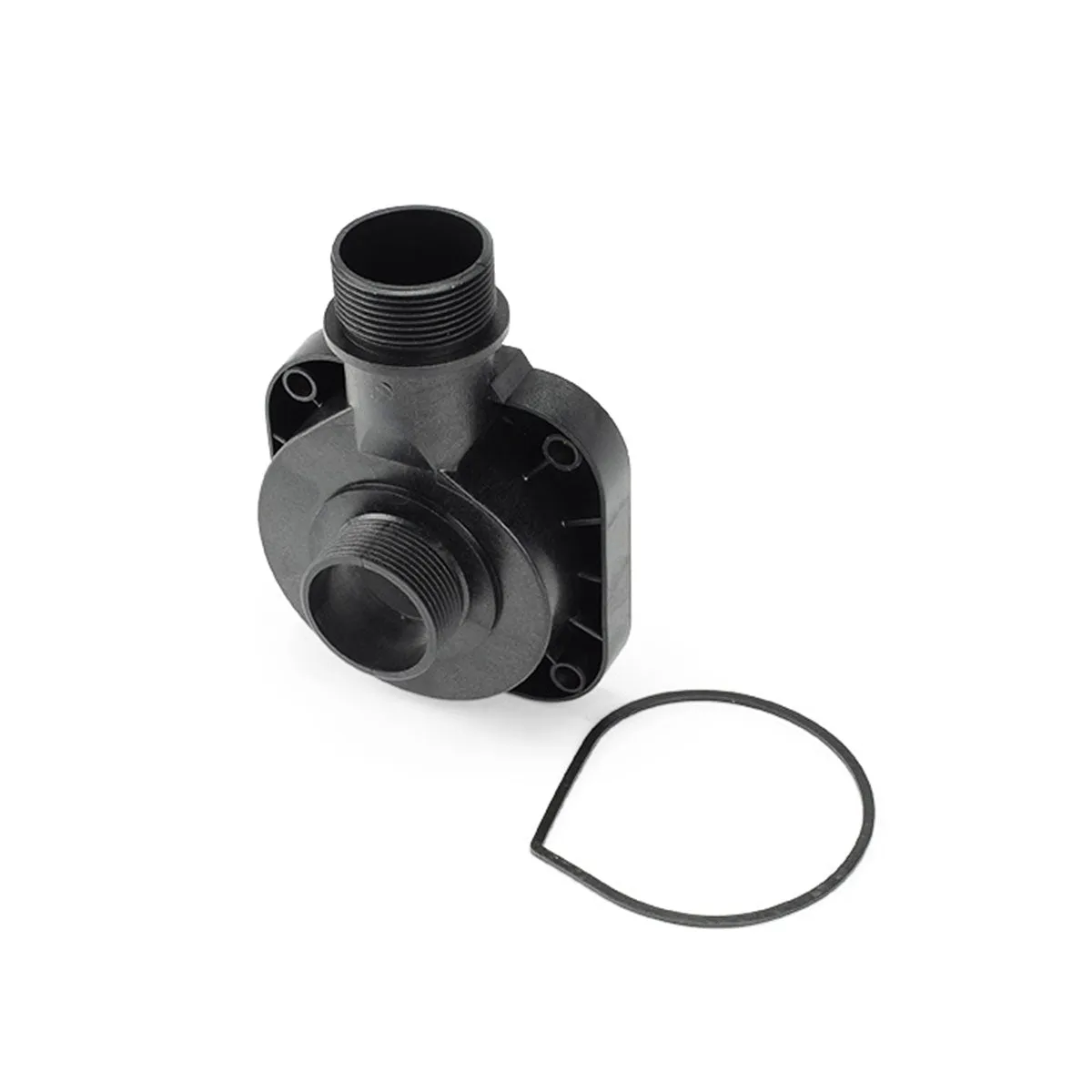

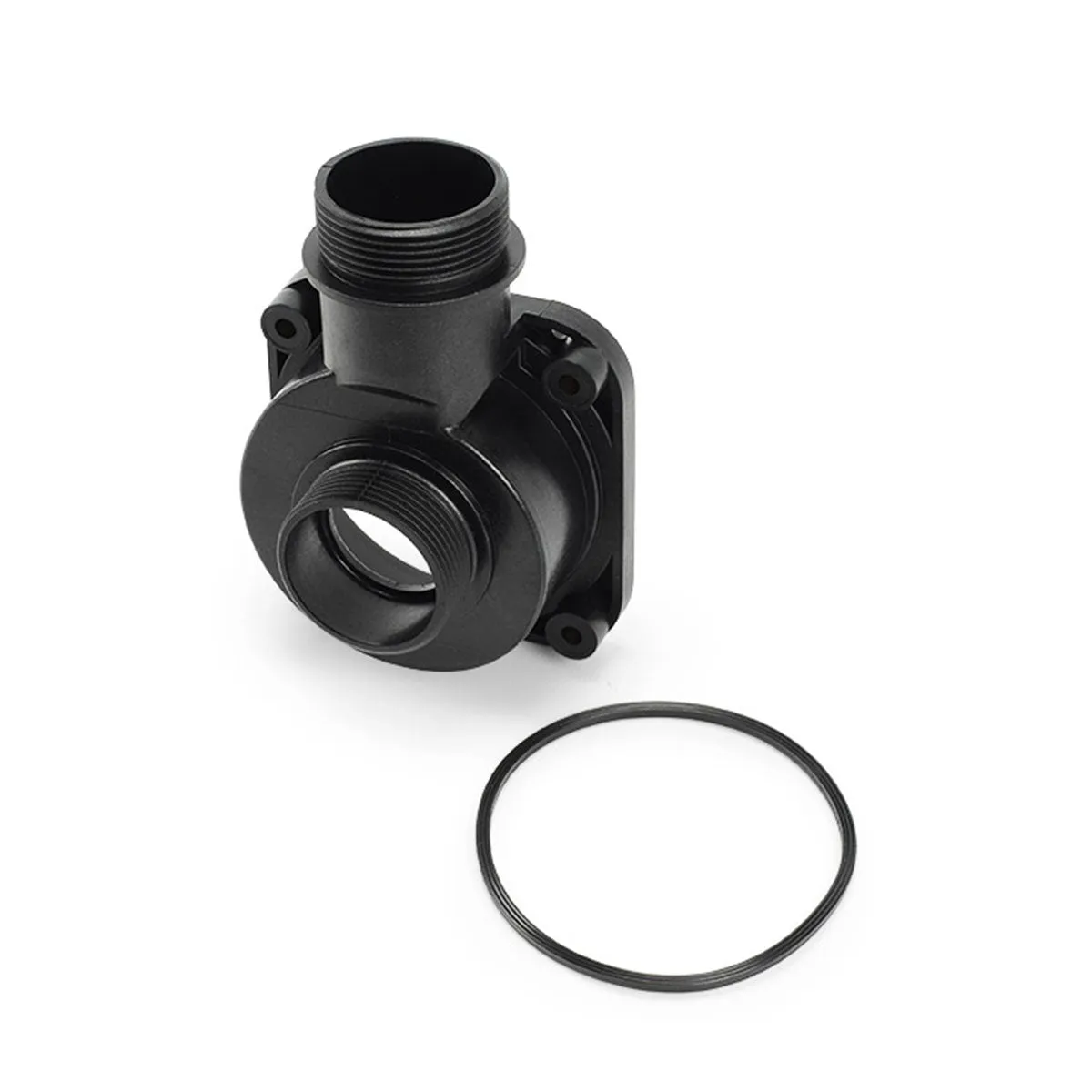

3. #91066 AquaSurge 2000/3000 (G2) Water Chamber Cover & O-Ring Kit

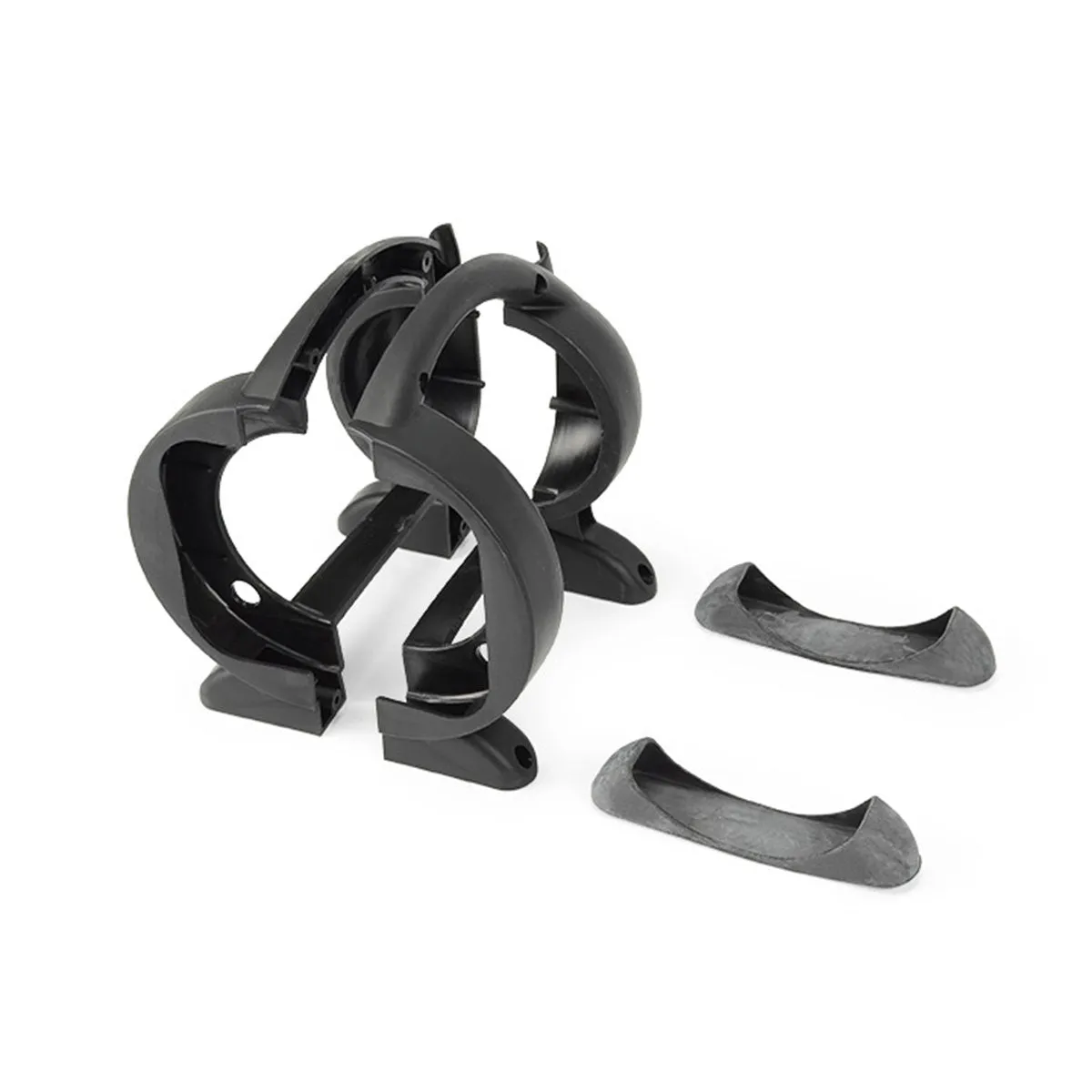

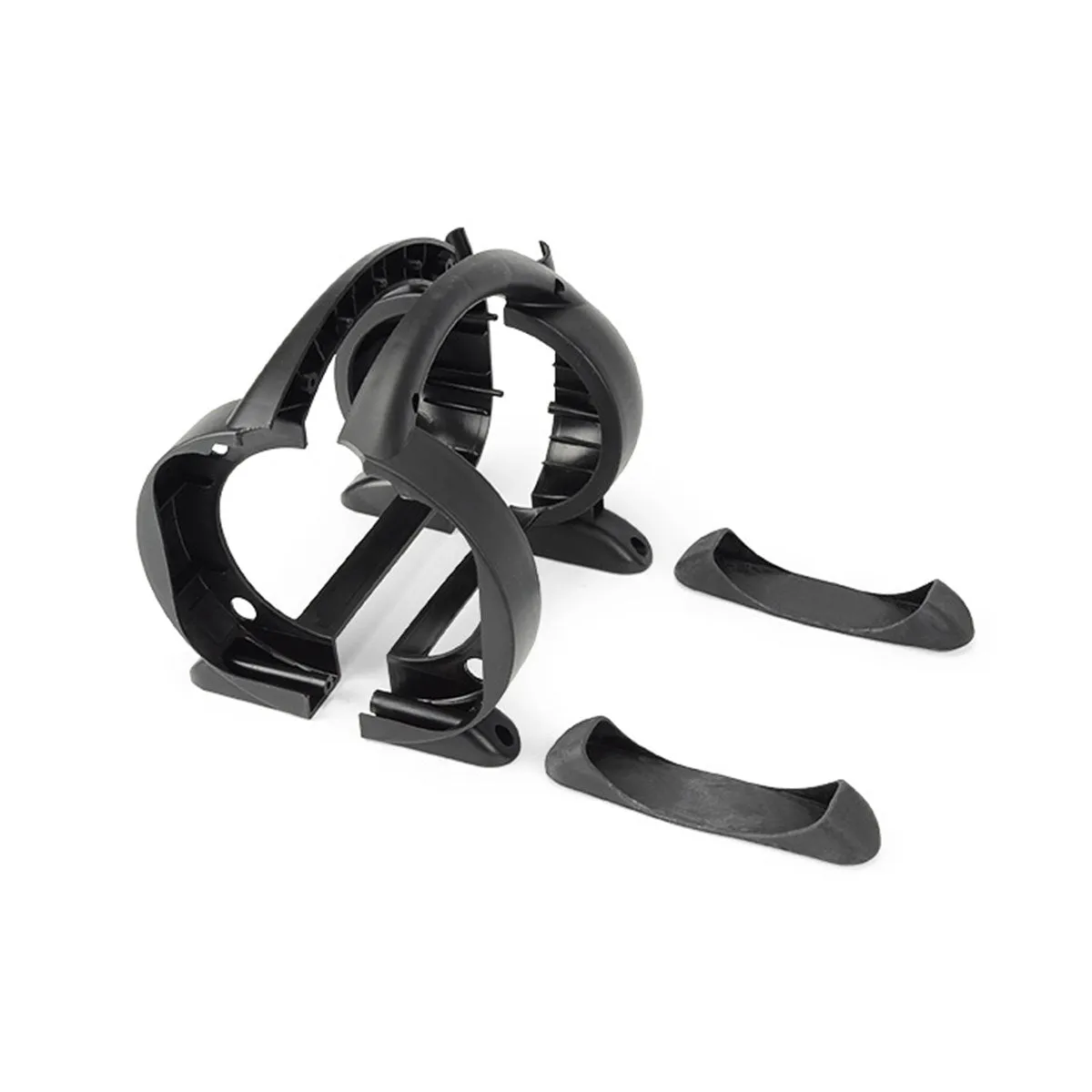

4. #91068 AquaSurge 2000/3000 (G2) Pump Handle & Feet Kit

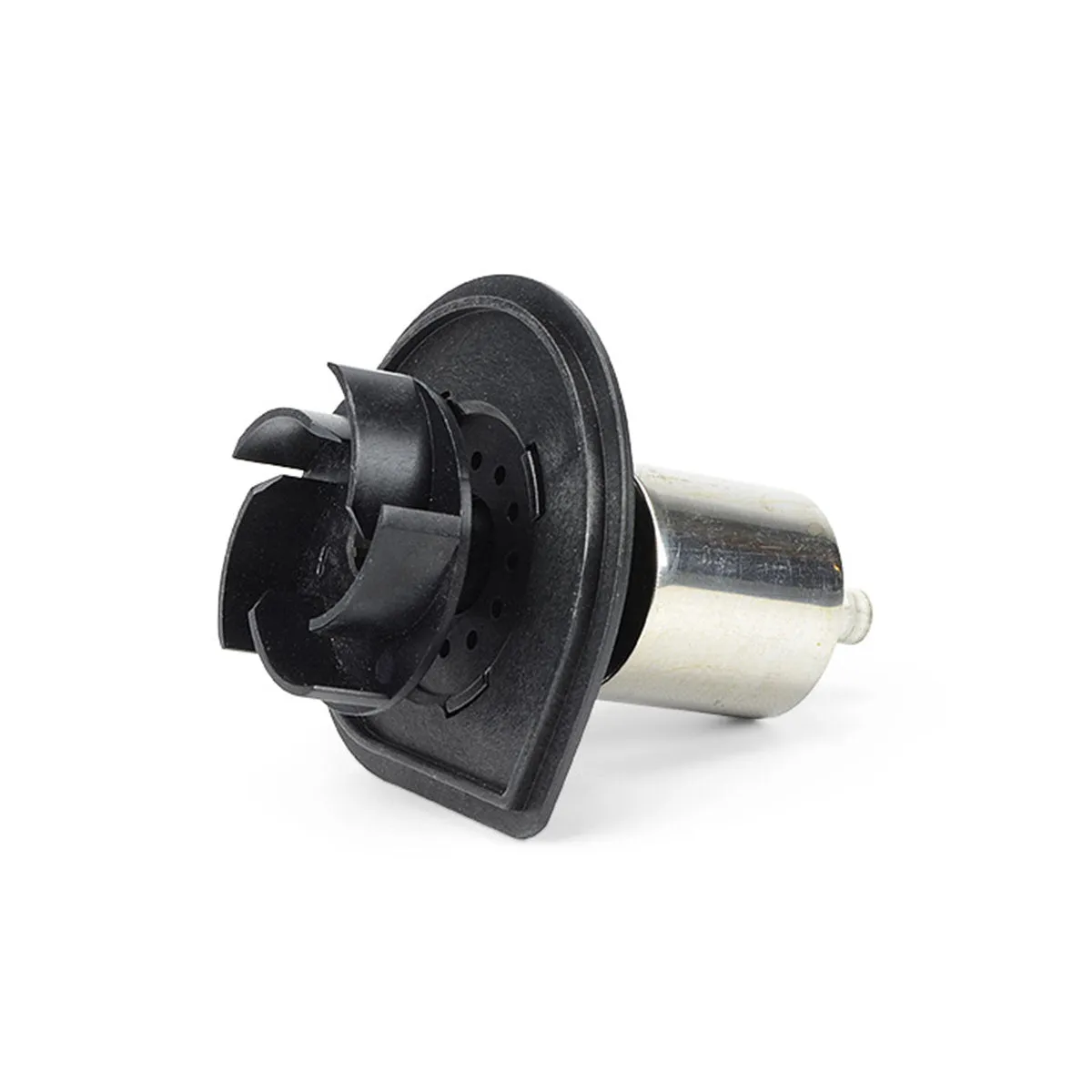

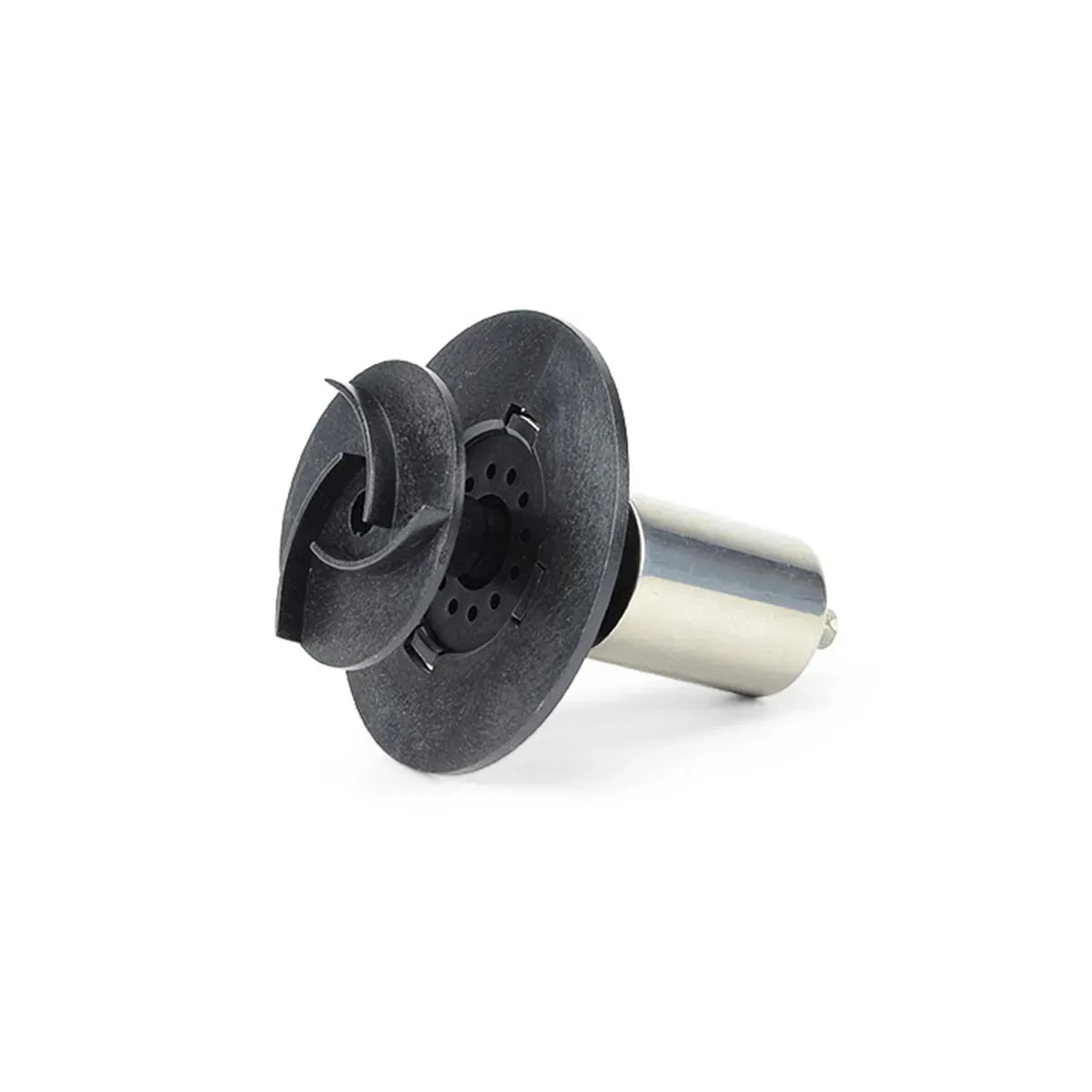

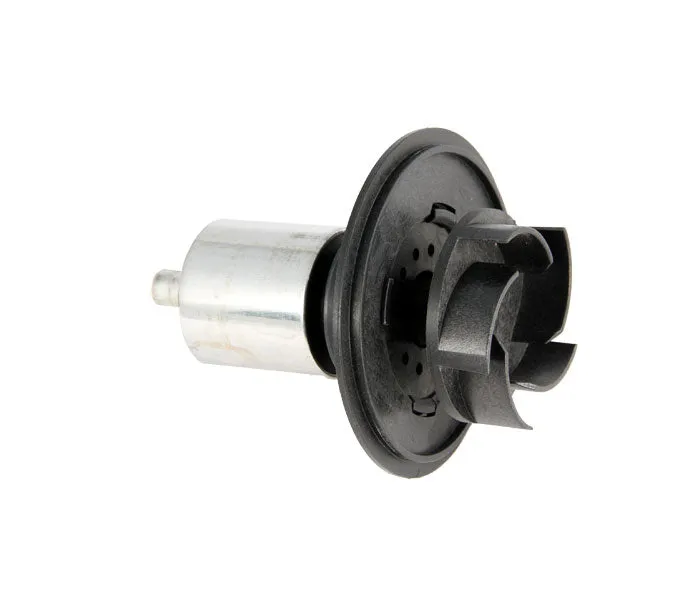

5. #91070 AquaSurge 2000 (G2) Replacement Impeller Kit

Aquasurge 3000 (G2) - Item #91018

1. #91063 AquaSurge 2000/3000 (G2) Intake Screen Kit
2. #91065 AquaSurge (G2) Discharge Fitting Kit
3. #91066 AquaSurge 2000/3000 (G2) Water Chamber Cover & O-Ring Kit
4. #91068 AquaSurge 2000/3000 (G2) Pump Handle & Feet Kit

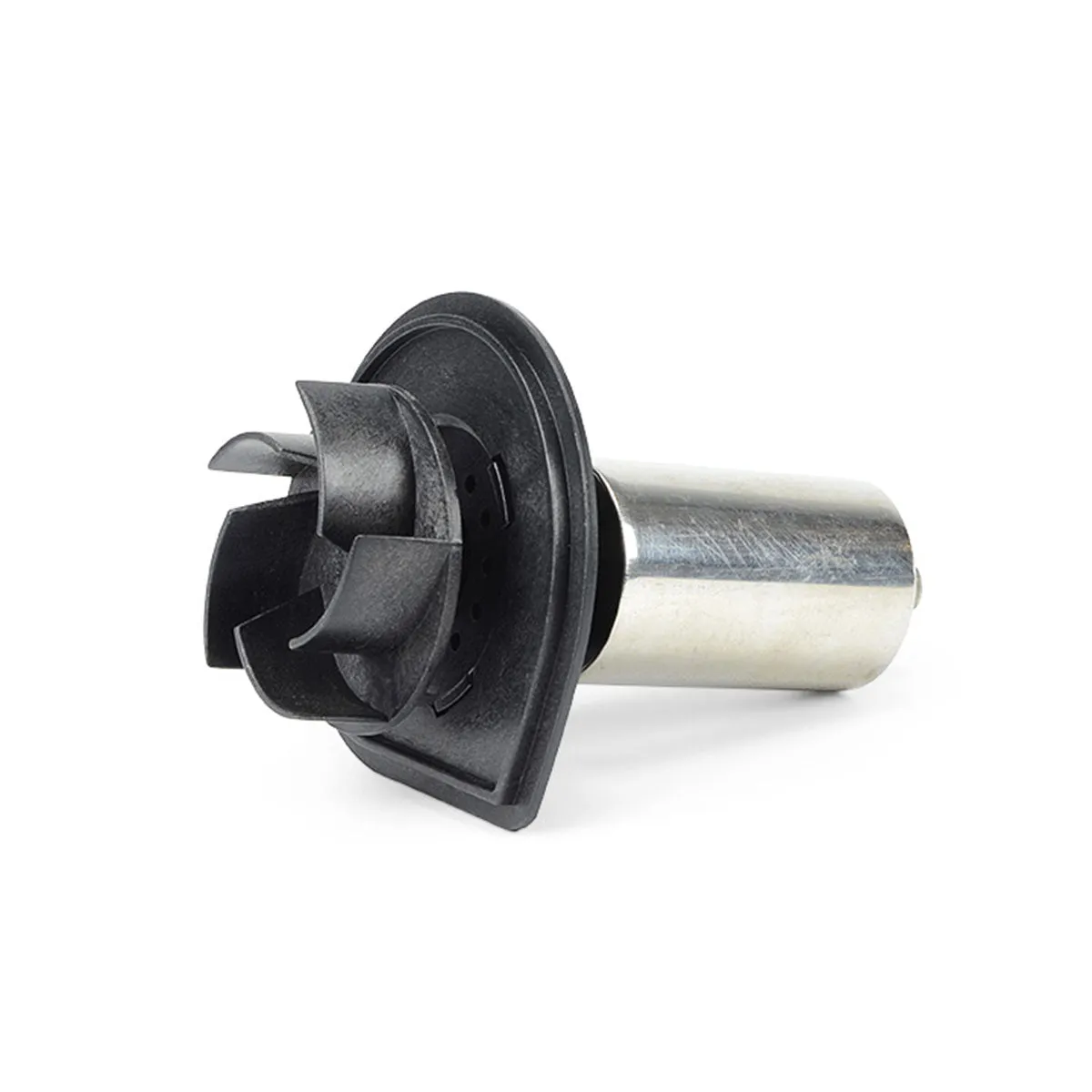

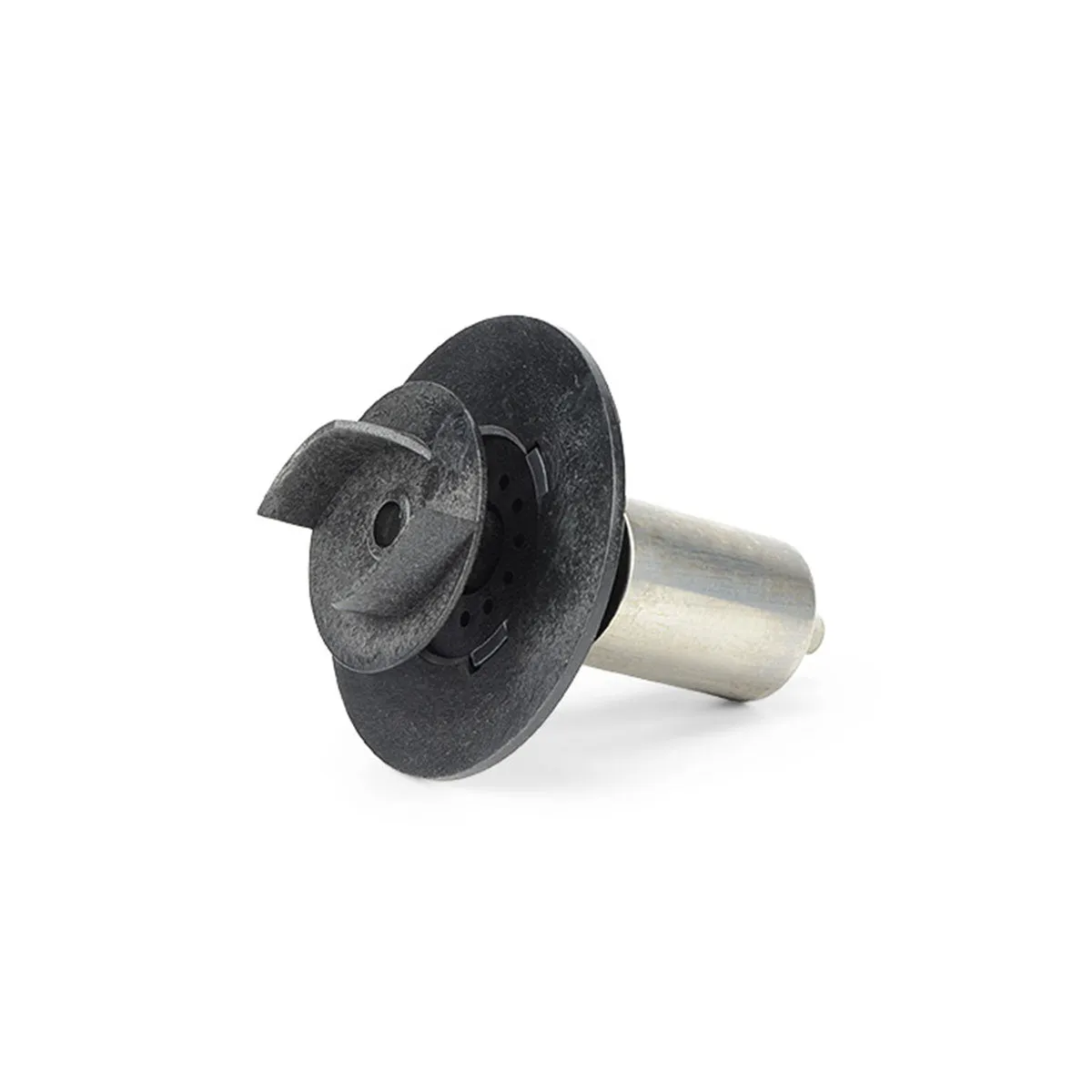

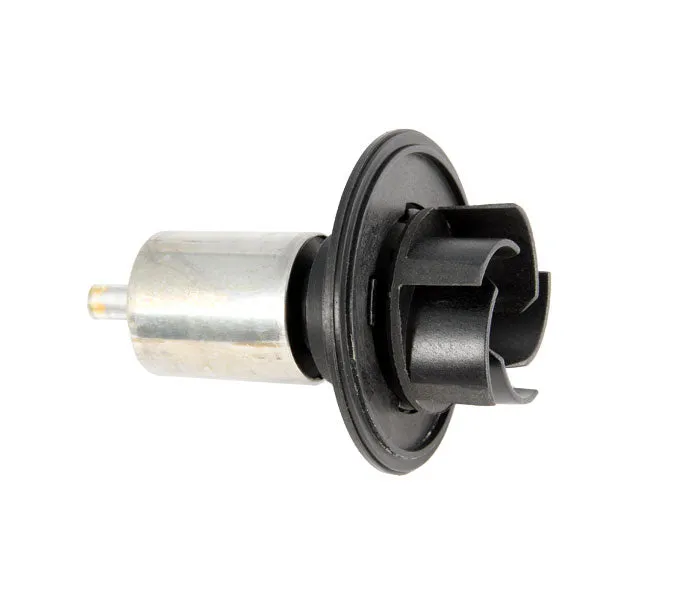

5. #91071 AquaSurge 3000 (G2) Replacement Impeller Kit

Aquasurge 4000 (G2) - Item #91019

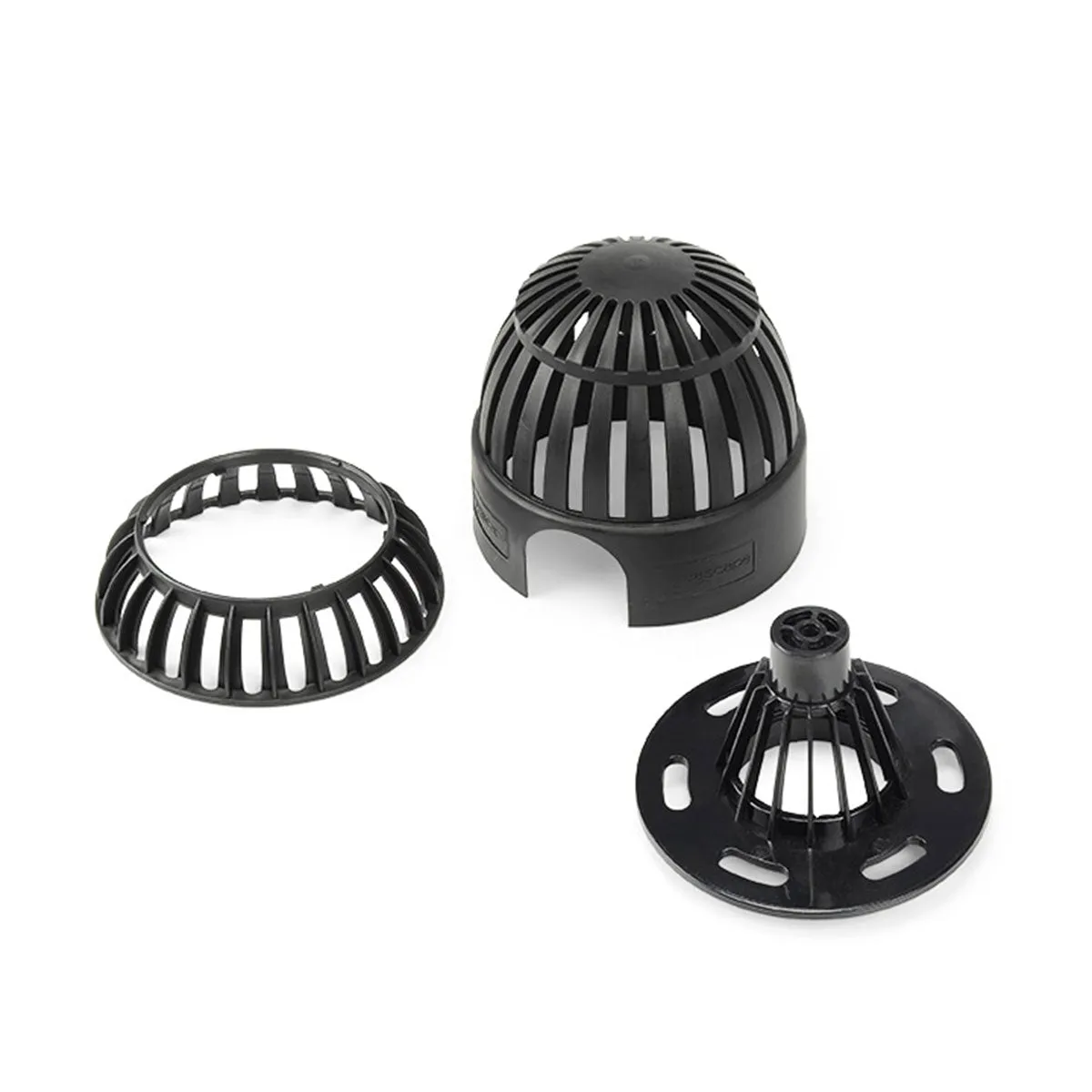

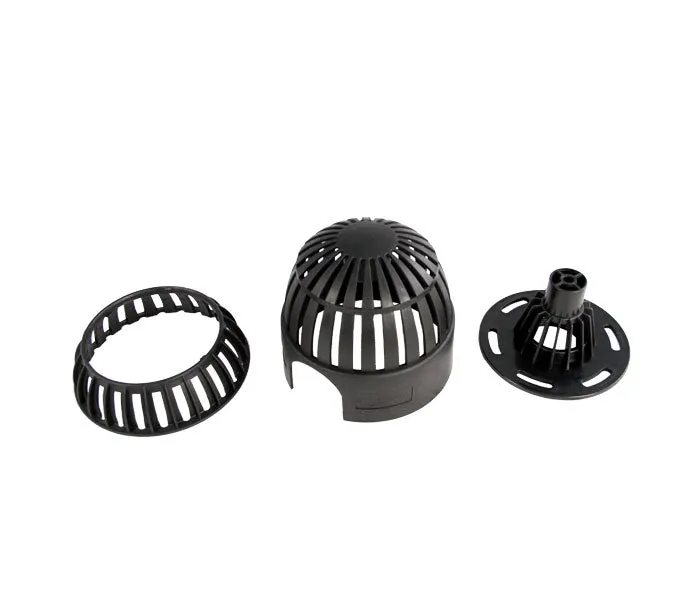

1. #91064 AquaSurge 4000/5000 (G2) Intake Screen Kit
2. #91065 AquaSurge (G2) Discharge Fitting Kit

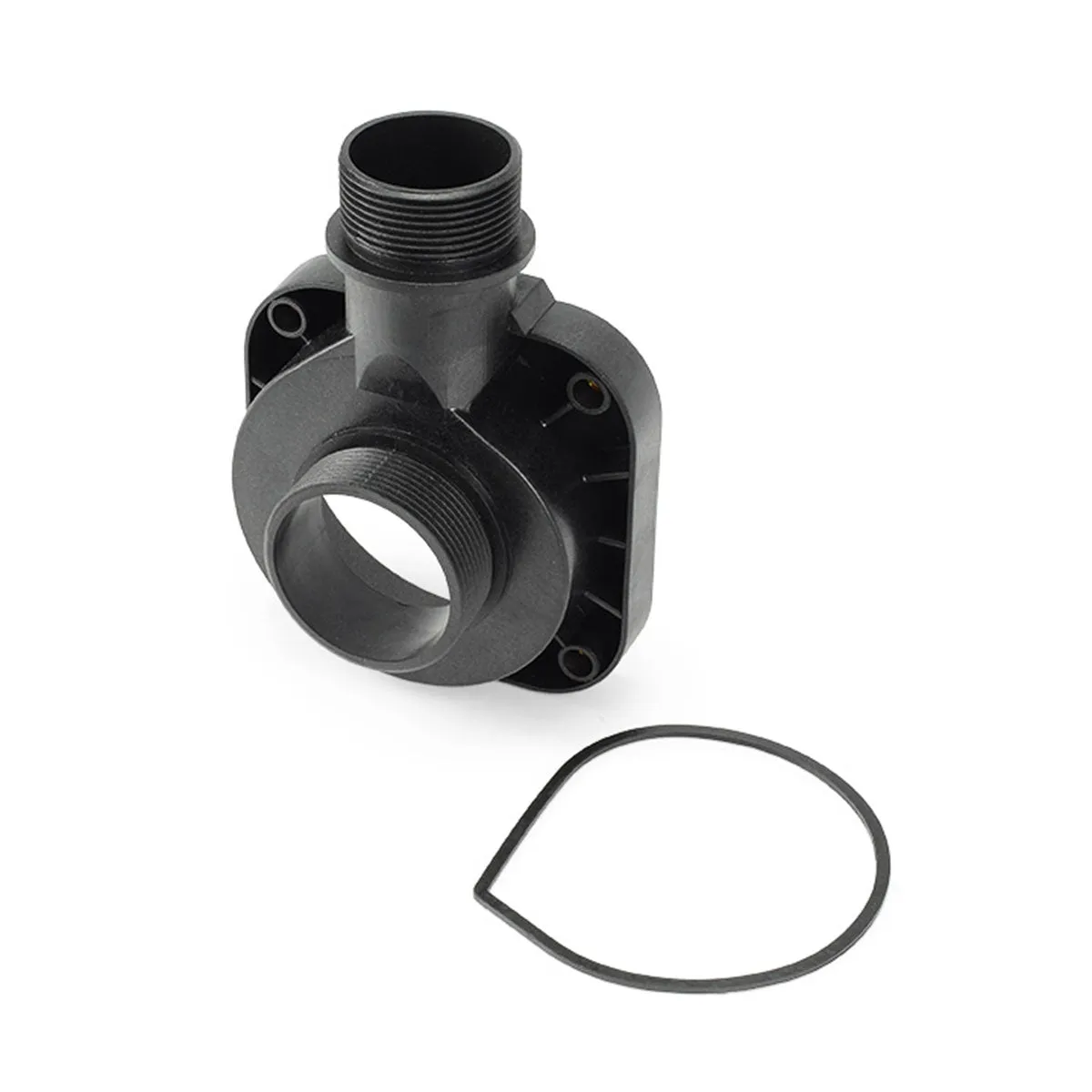

3. #91067 AquaSurge 4000/5000 (G2) Water Chamber Cover & O-Ring Kit
4. #91069 AquaSurge 4000/5000 (G2) Pump Handle & Feet Kit

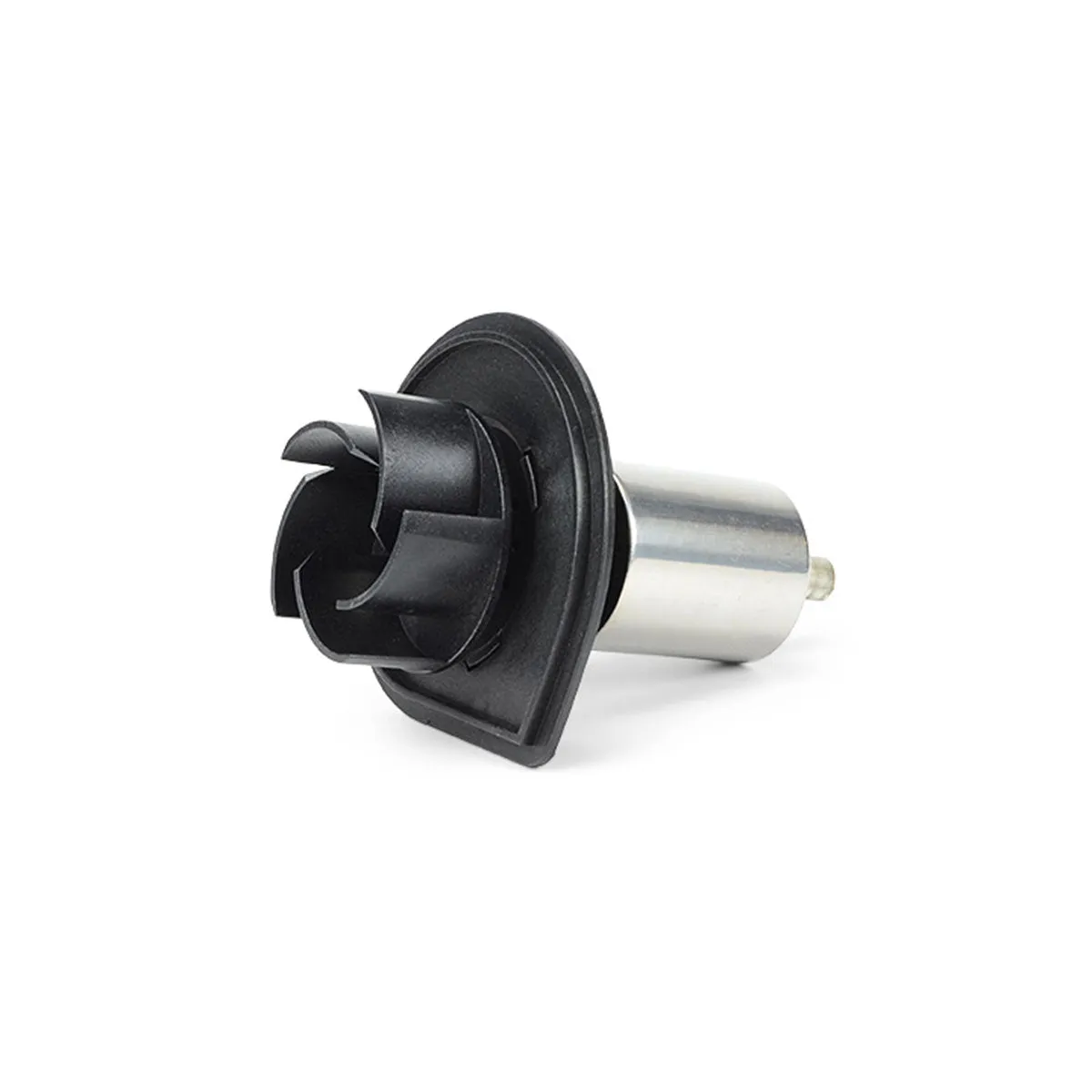

5. #91072 AquaSurge 4000 (G2) Replacement Impeller Kit

Aquasurge 5000 (G2) - Item #91020

1. #91064 AquaSurge 4000/5000 (G2) Intake Screen Kit
2. #91065 AquaSurge (G2) Discharge Fitting Kit
3. #91067 AquaSurge 4000/5000 (G2) Water Chamber Cover & O-Ring Kit
4. #91069 AquaSurge 4000/5000 (G2) Pump Handle & Feet Kit
5. #91073 AquaSurge 5000 (G2) Replacement Impeller Kit

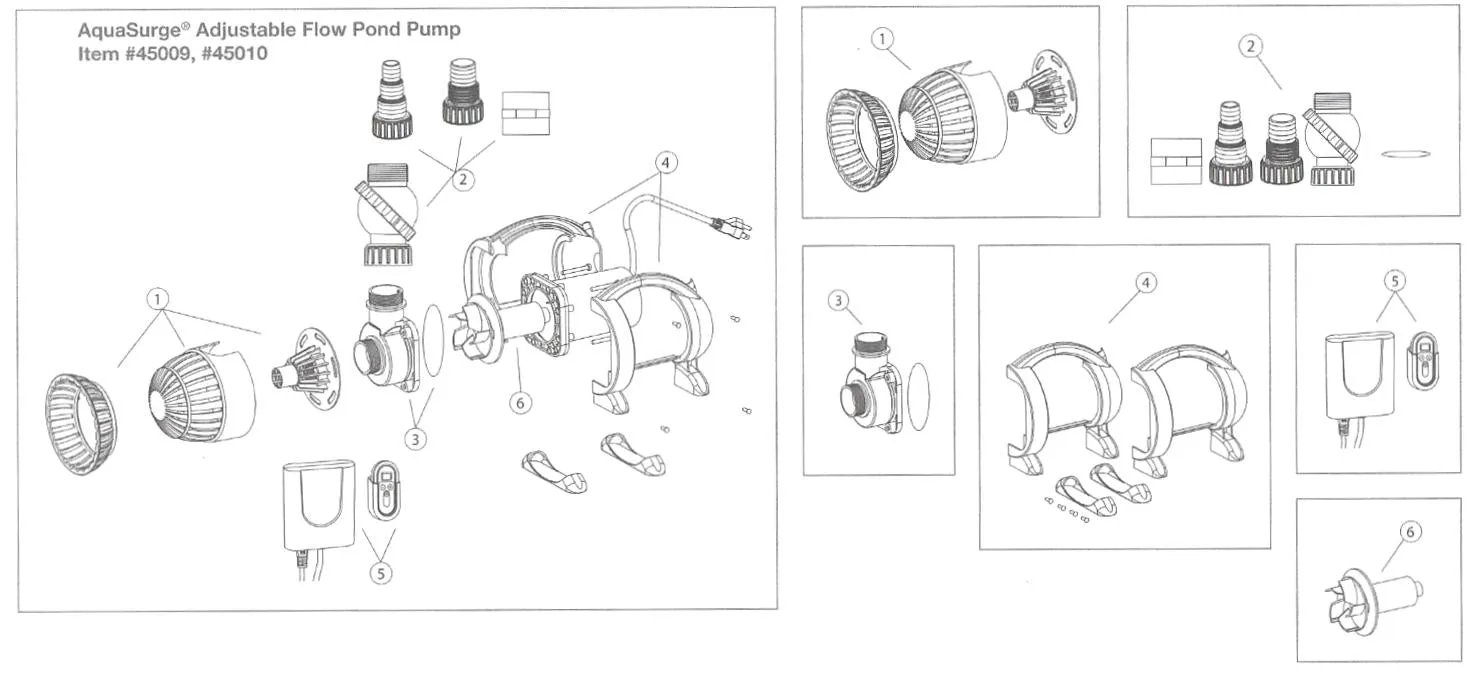

Aquasurge 2000-4000 (G2) - Item #45009

1. #91064 AquaSurge 4000/5000 (G2) Intake Screen Kit
2. #91065 AquaSurge (G2) Discharge Fitting Kit
3. #91067 AquaSurge 4000/5000 (G2) Water Chamber Cover & O-Ring Kit
4. #91069 AquaSurge 4000/5000 (G2) Pump Handle & Feet Kit
5. #45029 AquaSurge Adjustable Flow/AquaForce PRO Pump Remote and Receiver Kit (G2)
6. #45016 AquaSurge Adjustable Flow 2000-4000 Replacement Impeller Kit

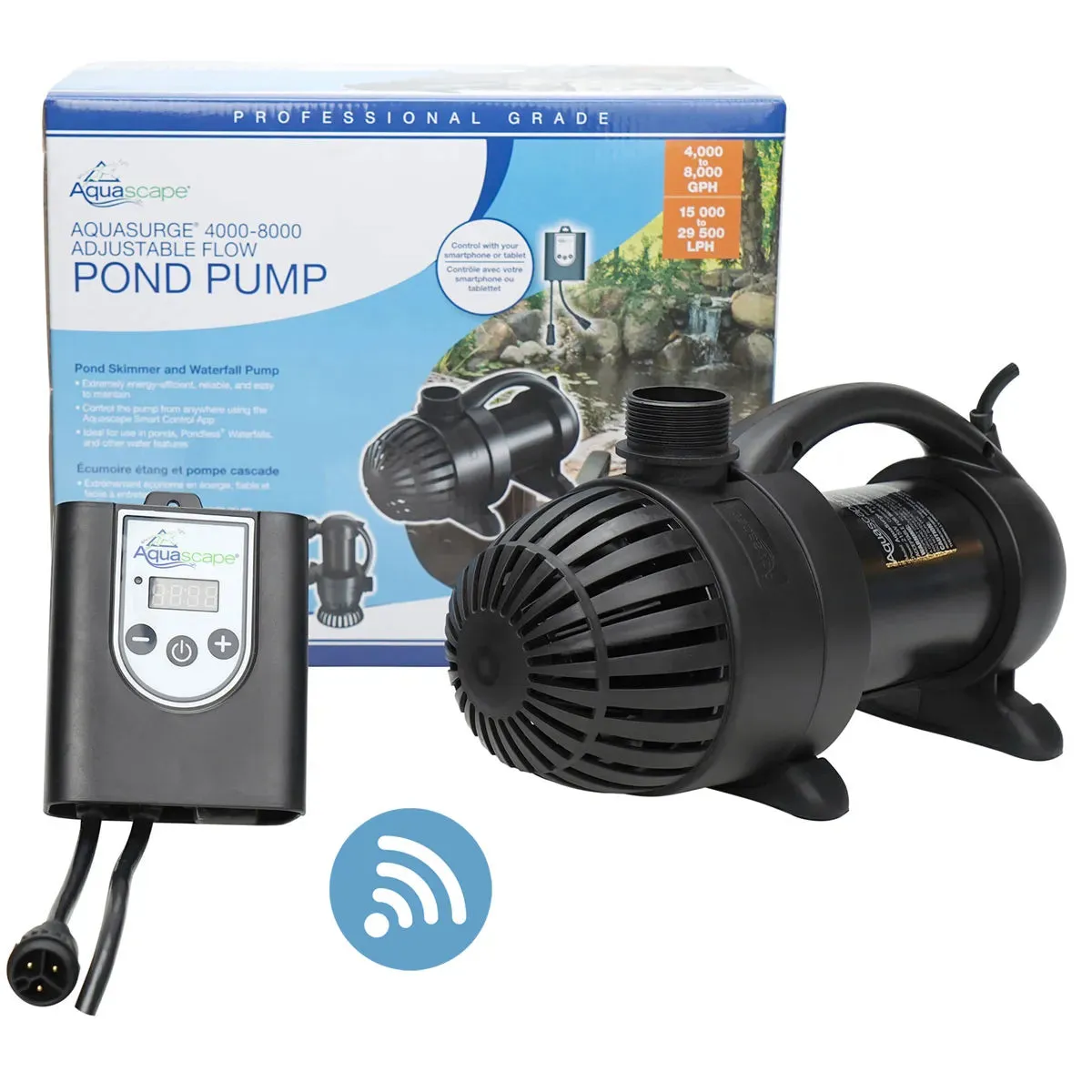

Aquasurge 4000-8000 (G2) - Item #45010

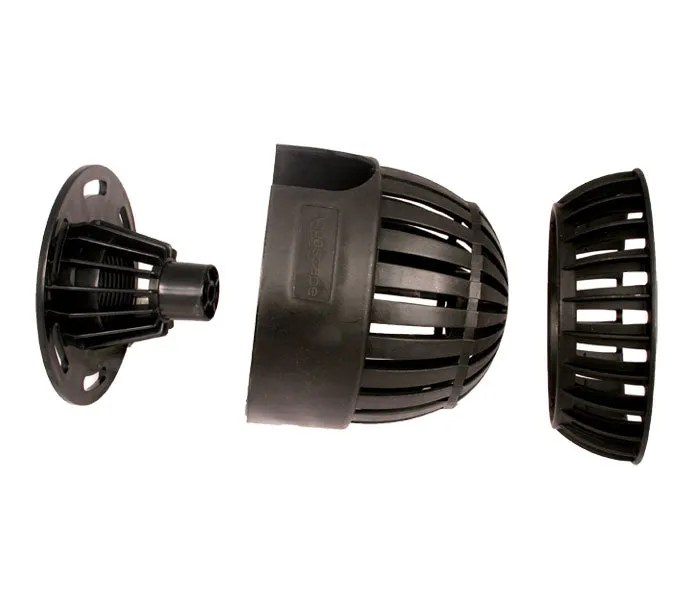

1. #45011 AquaSurge Adjustable Flow 4000-8000 Pump Intake Screen Kit
2. #91065 AquaSurge (G2) Discharge Fitting Kit
3. #45014 AquaSurge Adjustable Flow4000-8000 Pump Water Chamber Cover & O-Ring Kit
4. #45012 AquaSurge Adjustable Flow 4000-8000 Pump Handle & Feet Kit
5. #45029 AquaSurge Adjustable Flow/AquaForce PRO Pump Remote and Receiver Kit (G2)

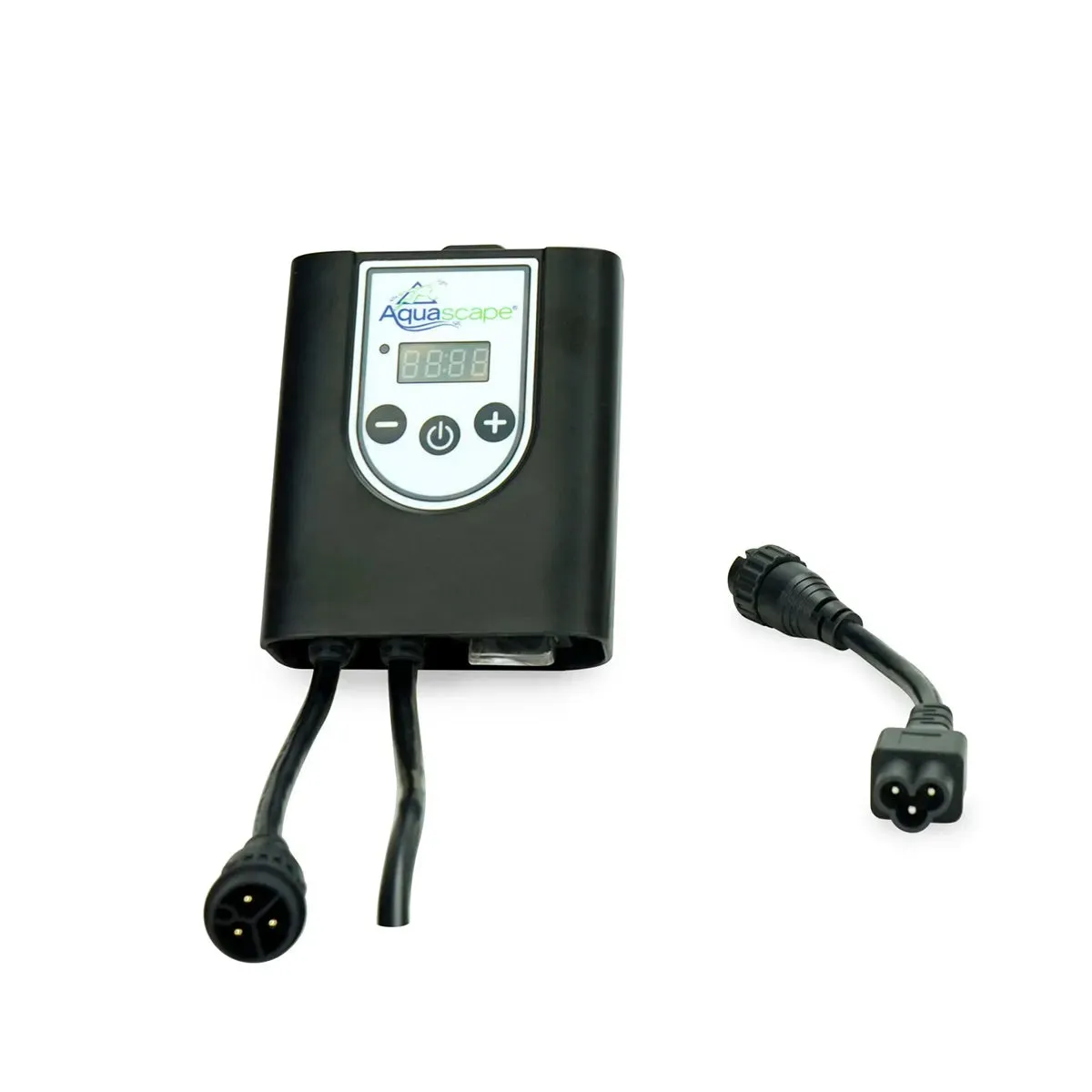

6. #45038 Smart Control Receiver

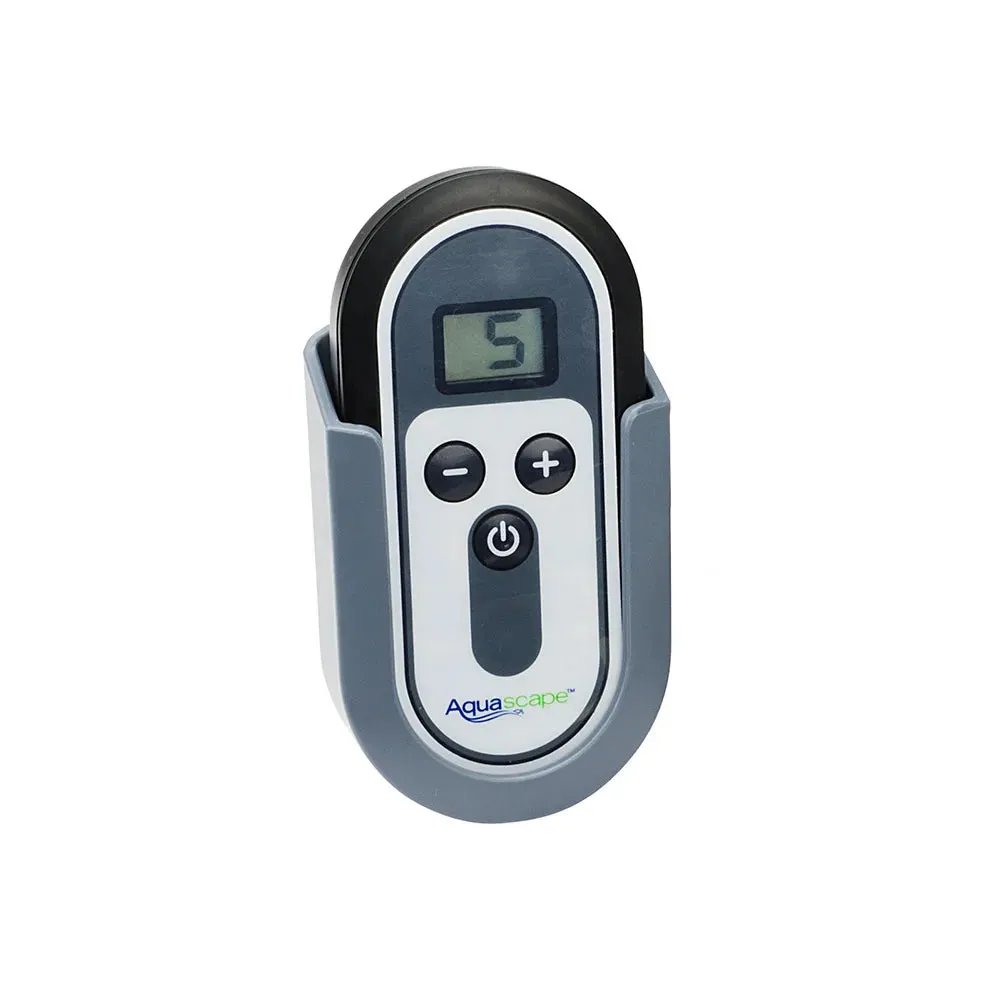

7. #45041 Universal Remote For Adjustable Flow Pumps
